標題: [WE] BCM JACK CARBINE [打印本頁]

作者: saswilliam 時間: 13-10-2014 22:46 標題: BCM JACK CARBINE

為左JACK CARBINE，你可以去到幾盡？

自己砌一支人無我有的玩具氣槍，一向係好多槍友的印以為傲的事情。自從由一個友人口中得知JACK CARBINE呢一支潮爆AR之後，係youtube睇左好多短片，鍾意隻色，同條骨。當然好大原因係中左travis haley毒啦。
https://www.youtube.com/watch?v=MwomoGLQkSI
https://www.youtube.com/watch?v=nZjlxxPUQp4
同朋友分享我的計劃時，竟然話，人人都砌緊JACK啦，有咩特別wor。
哈哈！好就等我砌一支完美版出嚟先得。

點先係完美？當然係睇得又打得啦！用咩系統先打得呢？
JACK CARBINE 係以BCM的AR15為基礎的一支mid-length gas system carbine。

只得單發，原始設計係無連發功能的，亦無auto sear pin的小洞。不過打GBB玩具槍，只有單發邊好玩㗎？我又一定接受唔到外觀有個咁大的瑕疵（多個窿）。
哈，又便宜又穩定的WE系統即時出現係我的腦海中。

點解WE系統？如果話jack carbine係single shot only，打auto咪毀滅幻想？
哈，幻想你支WE M4 係Low Shelf下身 for RDIAS Installation - Installation of a registered drop-in auto sear allows weapon to fire on full automatic。咪得lor 哈哈！

首先，RA tech 空白鍛造身！給kono arms send去日本做cerakote Disruptive Grey 同全部深淺刻！歷時成個幾月，hmmm，值得！

Geissele SMR MK1 rev A，真係可遇不可求！係量產JACK CARBINE的專用骨。

Damage Industries End Plate！忠於原註,cerakote 埋佢！當然唔少得就係D loop QD 扣啦！

ALS trigger，用銀色paint marker 上色！哈哈！

BCM marking Troy 前後BUIS！ Haley Strategic WML 同mount！BCM mod1 grip！MAGPUL Enhanced Trigger Guard！

B5 system 尾柄！十分好看呢！VFC WE M4用外管！唔可以有軍版外管的 M203 mount位.

Dytac BCM 星gas block！

QRF幫手完成9吋mid length gas system！大功告成！！

落場實戰，當然係加上Aimpoint T1，配Larue LT751，full cowitness mount！

我的全美版本JACK Carbine 玩具！打得又睇得！羨慕吧！很想要吧！哈哈。

[ 本帖最後由 saswilliam 於 14-10-2014 15:36 編輯 ]

作者: kingcobra 時間: 13-10-2014 23:02

ching~成支砌左幾$?唔計T1

作者: MK~ 時間: 13-10-2014 23:03

流晒口水

作者: saswilliam 時間: 13-10-2014 23:09 標題: 回覆 2# 的帖子

雞幾，細數唔記得了，儲齊parts，等等等係最難的。

作者: kingcobra 時間: 13-10-2014 23:14

其實BCM JACK CARBINE係咩黎

作者: saswilliam 時間: 13-10-2014 23:21 標題: 回覆 5# 的帖子

travis haley毒
https://www.youtube.com/watch?v=MwomoGLQkSI
https://www.youtube.com/watch?v=nZjlxxPUQp4

作者: kingcobra 時間: 13-10-2014 23:26

段片我有睇,CHING支M4真係一模一樣~但O係維基搵唔到BCM係咩

作者: saswilliam 時間: 13-10-2014 23:32 標題: 回覆 7# 的帖子

http://www.bravocompanymfg.com/
bravocompanymanufacturing, a brand of AR just like others
seems to have good quality. It get real popular in the recent years.

[ 本帖最後由 saswilliam 於 14-10-2014 12:40 編輯 ]

作者: longhei 時間: 13-10-2014 23:43

毒到核爆

作者: saswilliam 時間: 14-10-2014 00:09

Geissele 的鋼nut真的太正了，做工

[ 本帖最後由 saswilliam 於 14-10-2014 00:10 編輯 ]

作者: garyyanykw 時間: 14-10-2014 00:54

正到冇朋友

作者: ELSONQOO 時間: 14-10-2014 01:41

利害利害..錢都係其次..

作者: ohnavi 時間: 14-10-2014 10:04

真的好執著的project，利害

作者: saswilliam 時間: 14-10-2014 10:21

多謝各位師兄認可！自從完成這個project之後，好空虛。
冇咩靈感又唔知道下支砌咩。一屋AR,AK GBB，快啲出G3，FAL就好了。

作者: ayaka 時間: 14-10-2014 10:54

完美

作者: Kennis 時間: 14-10-2014 10:54

~~~正呀

作者: joeyjordisonhin 時間: 14-10-2014 11:08

我會唔捨得打...

作者: RCman 時間: 14-10-2014 11:14

真係認真之作

太完美了

作者: rho837 時間: 14-10-2014 12:12

好耐冇係度見過呢啲質素既玩具!

作者: mr.dizzle 時間: 14-10-2014 12:58

勁呀師兄!
條CHARGING HANDLE 邊度搵架...我搵左好耐都無../.\
定用珍野改落支WE度? (小弟都是用WE,想請教)

作者: ayaka 時間: 14-10-2014 13:02

請問saswilliam兄, kono係咪比日本鈴友搞深刻?

作者: 2slow 時間: 14-10-2014 14:21

製作認真值得一贊

作者: saswilliam 時間: 14-10-2014 15:20

引用:

原帖由 mr.dizzle 於 14-10-2014 12:58 發表
勁呀師兄!
條CHARGING HANDLE 邊度搵架...我搵左好耐都無../.\
定用珍野改落支WE度? (小弟都是用WE,想請教)

珍野直上RA tech身

原裝WE身都可以直上

[ 本帖最後由 saswilliam 於 14-10-2014 15:37 編輯 ]

作者: saswilliam 時間: 14-10-2014 15:23

引用:

原帖由 ayaka 於 14-10-2014 13:02 發表
請問saswilliam兄, kono係咪比日本鈴友搞深刻?

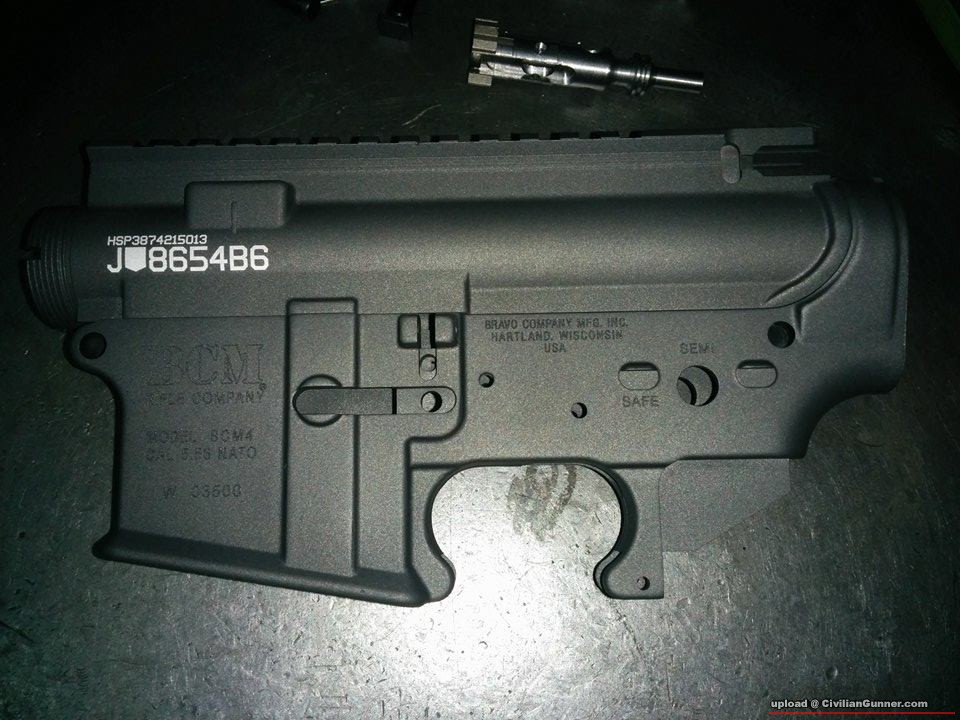

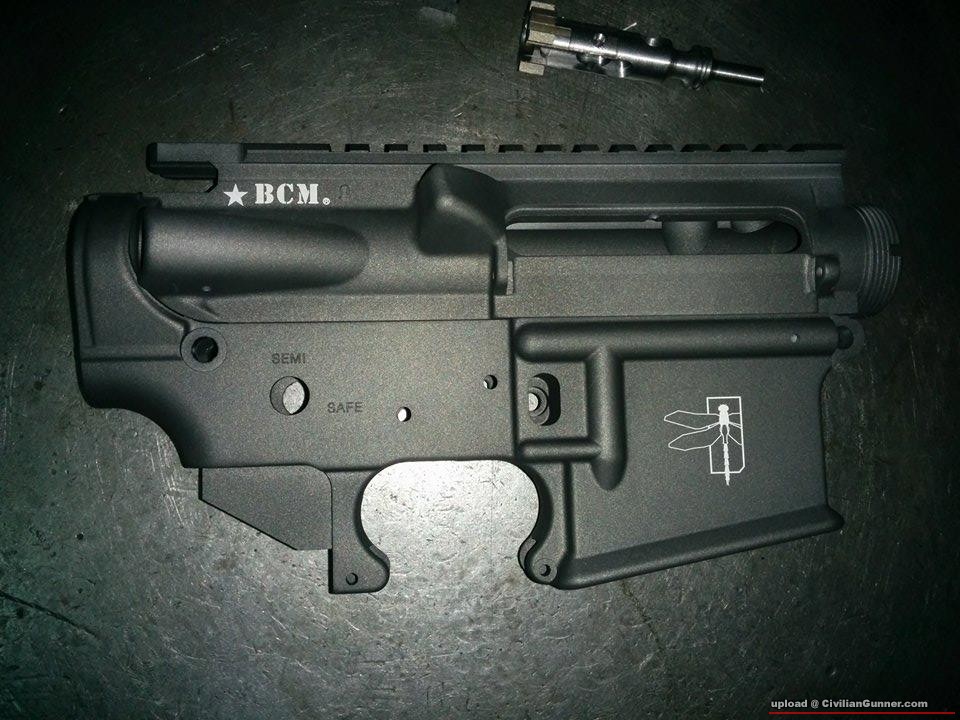

是的所以時間耐啲，不過絕對專業同對色。
條骨係美國人真jack換骨落黎的。個身係日本仔調色的。95％以上無咩色差！係要比人濕下腳啦。

[ 本帖最後由 saswilliam 於 14-10-2014 15:32 編輯 ]

圖片附件: 10660601_445038545634809_246370926_n.jpg (14-10-2014 15:32, 164.61 KB) / 該附件被下載次數 149
http://wargamehk.com/cgf/attachment.php?aid=222505

圖片附件: 10695171_445038495634814_1265695264_n.jpg (14-10-2014 15:32, 163.56 KB) / 該附件被下載次數 162
http://wargamehk.com/cgf/attachment.php?aid=222506

作者: clay82 時間: 15-10-2014 02:07

執著完美!佩服!

另外想問，比起陽極，cerakote耐磨嗎？

作者: AICSman 時間: 15-10-2014 06:52

Here is the rail, but just little longer

http://www.midwayusa.com/product/2539194544/geissele-super-modular-rail-mk2-free-float-handguard-ar-15-aluminum

作者: saswilliam 時間: 15-10-2014 08:05

引用:

原帖由 AICSman 於 15-10-2014 06:52 發表
Here is the rail, but just little longer

http://www.midwayusa.com/product ... uard-ar-15-aluminum

This link you show is a Geissele Mk2. The totally wrong model and wrong length for building a jack carbine. You would need a MK 1 to complete it. The essience of Jack. You can find it sometimes on ebxy.
used or new.

goodluck.

作者: saswilliam 時間: 15-10-2014 08:09

引用:

原帖由 clay82 於 15-10-2014 02:07 發表
執著完美!佩服!

另外想問，比起陽極，cerakote耐磨嗎？

I think 陽極比較耐磨。cerakote is just a coating after all.It will wear off in hard use.

But you cannot 陽極 disruptive grey on the gun.
so maybe cerakote is the second best.

[ 本帖最後由 saswilliam 於 15-10-2014 08:12 編輯 ]

作者: AICSman 時間: 17-10-2014 04:49

i think they Change the "Bone" now on BCM website

作者: saswilliam 時間: 17-10-2014 08:51 標題: 回覆 29# 的帖子

Good eye But No.The mk1 rail shown on bcm web site is the original Geissele M K1 Rev B rail. with horizontal slot at the bottom. There is no metal bracket for the bolt in the mounting point. and the design of the mounting screw is different.

After a period of production. Geissele receive reports that over torque the screws when mounting the rail for the original design will actually cost unrepairable damage to the Rev B rail itself.

Hence they modify the MK1 design a bit and now all the production MK1 is REV A version with triangular cuts at the bottom for reduce weight and a replaceable bracket for rail installing.

That means. the rail shown on the bcm page is no longer in production.But if you buy one from them now in the USA, they will build you a jack exactly 100% same like mine.

作者: AICSman 時間: 18-10-2014 00:31 標題: 回覆 30# 的帖子

Good to know william

Geissele always have quality parts.

hope one day i can attend Travis training class soon.

btw, BCM release new butt stock this month.
http://www.bravocompanyusa.com/BCM-GUNFIGHTER-s-Stock-Mod-0-Black-p/bcm-gfs-mod-0-black.htm

[ 本帖最後由 AICSman 於 18-10-2014 00:35 編輯 ]

作者: rho837 時間: 18-10-2014 02:23

This I call "titanium gun metal grey whatever" looks good and I think its also good on the AK as well.

作者: AICSman 時間: 18-10-2014 04:47

Some people in US called this concrete. if i'm not mistaken, it uses in urban warfare.

作者: saswilliam 時間: 18-10-2014 11:38 標題: 回覆 32# 的帖子

yup, HSP market this as "disruptive grey" , it is because they blend in very easily in urban combat environment.

I am a geissele fan boy =D

BCM new stock is good looking, I love the way how it was designed to install to the buffertube too!

作者: ayaka 時間: 18-10-2014 19:50

william兄知唔知同TUNGSTEN比較邊隻深色D?

作者: saswilliam 時間: 19-10-2014 00:08 標題: 回覆 35# 的帖子

ayaka兄 To create 'Disruptive Grey', just mix 6 ML of H-237 Tungsten to 2 ML of H-146 Graphite Black.
未見過Tungsten，不過Disruptive Grey係Tungsten溝黑色。我估Tungsten會淺色啲。

作者: ayaka 時間: 19-10-2014 14:32

引用:

原帖由 saswilliam 於 19-10-2014 00:08 發表
ayaka兄 To create 'Disruptive Grey', just mix 6 ML of H-237 Tungsten to 2 ML of H-146 Graphite Black.
未見過Tungsten，不過Disruptive Grey係Tungsten溝黑色。我估Tungsten會淺色啲。

THANKS WILLIAM 兄

溝左之後金屬粉比TUNGSTEN 少一d, 個人好喜歡

作者: clay82 時間: 19-10-2014 21:08

IMO, MK1 and MK3 rail look the best among all geissele rail

really a nice collection, i have to say that again

作者: saswilliam 時間: 19-10-2014 22:12 標題: 回覆 38# 的帖子

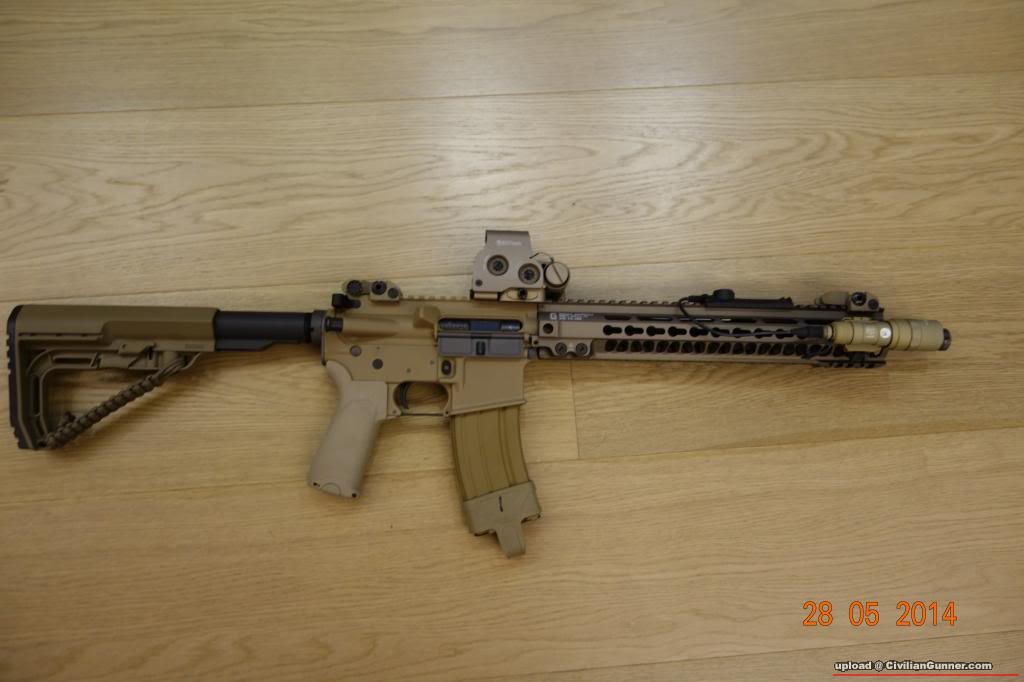

This is my MK4 keymod in DDC.
I quite like it.

圖片附件: DSC01609.jpg (19-10-2014 22:12, 92.9 KB) / 該附件被下載次數 216
http://wargamehk.com/cgf/attachment.php?aid=222629

作者: MK~ 時間: 20-10-2014 00:05

幾時換埋BCM個新托呀^^

作者: saswilliam 時間: 20-10-2014 21:49

引用:

原帖由 MK~ 於 20-10-2014 00:05 發表
幾時換埋BCM個新托呀^^

哈哈訂左啦，等運到！

作者: clay82 時間: 21-10-2014 00:10 標題: 回覆 39# 的帖子

I like this color!!
It seems the ddc mk4 and mk5 rails look better than mk3
mk3 are more like reddish brown

作者: AICSman 時間: 21-10-2014 00:38

William, how you like the Minimalist Stock?

i plan to get one also. Did you brace the paracord yourself too?

Nice looking bro.

作者: saswilliam 時間: 21-10-2014 07:47 標題: 回覆 43# 的帖子

it is light and fit snug on the buffer tube.
that para cord comes with it prefit by M F T when I get it.
ofcourse with some extra cost.

作者: mr.dizzle 時間: 21-10-2014 15:38

引用:

原帖由 saswilliam 於 19-10-2014 22:12 發表
222629This is my MK4 keymod in DDC.
I quite like it.

師兄請問你果枝係SUREFIRE 咩型號電筒?

作者: saswilliam 時間: 21-10-2014 16:32 標題: 回覆 45# 的帖子

SureFire M300 Mini Scout LED Weapon Light
200 lumens

作者: AICSman 時間: 23-10-2014 03:36

just ordered MTS stock for my rifle

作者: Doughboy 時間: 23-10-2014 16:21

有幸19號見過真身

作者: mr.dizzle 時間: 23-10-2014 16:39

引用:

原帖由 AICSman 於 23-10-2014 03:36 發表
just ordered MTS stock for my rifle

With paracord ?

作者: AICSman 時間: 24-10-2014 00:38 標題: 回覆 49# 的帖子

i will do the paracord myself.

作者: toto0321 時間: 1-12-2014 06:06

Is the incog discreet rifle bag good? Worth the price?
